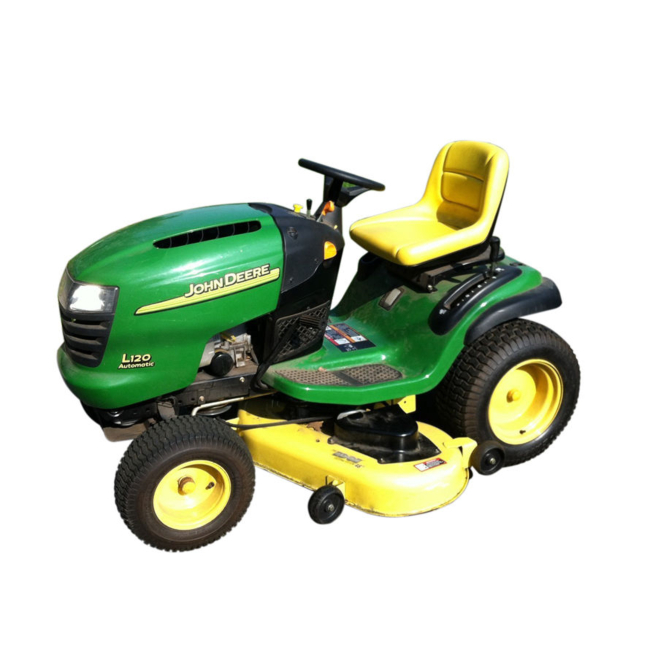

John Deere L120 Garden Tractor Spare Parts

John Deere L120 Garden Tractor Spare Parts

Image Product Name Price Qty
John Deere X140, L120 , L145 Petrol Tractor Engine Service Kit LG230
This service kit will fit the Briggs & Stratton 18, 20, & 25 HP Intek V-Twin engine, often used on L120 tractors. Fits models 125, 135, 145, 155C, 190C, L111, L118, L120 LA120, LA130, LA140, LA150
£54.60
John Deere L Series 48" Blade Set GY20568
Fits all L series John Deere tractors with ROUND hole fixing. Always use genuine John Deere blades.
£52.00
John Deere 48" High Lift Bagging Blade kit GX20434
John Deere 48" High Lift Bagging Blade kit GX20434 includes 3x blades
£63.77
John Deere L100 Series Transmission Belt GX20006
Fits John Deere L105,107,120, X110,120 & X140 series tractors.
£30.55
John Deere L120 48" Primary Deck Belt GX20305
Fits early 48" cutter deck for L120 before serial no -150000
£46.29
John Deere Cutter Deck Drive Belt 48" GX21833
Cutter Deck Drive Belt 48" GX21833
£57.85
John Deere Blade Shaft Assembly GY20785
John Deere deck blade shaft assembly GY20785 for models below serial number 150000.
£64.26
John Deere Spindle GY20050
Spindle GY20050
£64.26
John Deere Cutter Deck Wheel GX10168
Cutter deck anti-scalp wheel GX10168
£9.06
John Deere Idler Pulley GY20629
John Deere L120 Deck 48" Idler Pulley GY20629
£33.88
John Deere Idler Pulley GY20067
John Deere L120 Deck 48" Idler Pulley GY20067
£24.22
John Deere Idler Pulley GX20287
John Deere L120 transmission idler pulley GY20287
£17.82
John Deere Idler Pulley GX20286
John Deere L120 transmission idler pulley GY20286
£16.08
John Deere Mulching Cover GY20417
Mulch Cover 48" Deck GY20417
£45.50
John Deere X100 Series 2-Bag Collection System Fits All 42" Decks FEBM21889
John Deere X100 series 2-bag collection system fits all 48" decks FEBM21889
£329.00

Be the first to review this product

OR

Quick Overview

For your convenience we have listed below the most commonly used parts in a routine service for the John Deere L120 and we have added exploded parts diagrams for the more obscure parts that you may require.
Use the + and - buttons to add and remove items from the quote request form below.



D1: 1 GX20226BLE Guide
D1: 2 GX20276BLE Rod
D1: 3 24H1305 Washer
D1: 4 GX21211 Cotter Pin
D1: 5 03M7185 Bolt
D1: 6 GY20090BLE Arm
D1: 7 GX23240 Bushing
D1: 8 14M7396 Lock Nut
D1: 9 GX20287 Idler
D1: 10 GX20018 Extension Spring
D1: 11 GX20006 Flat Belt
D1: 12 14M7303 Flange Nut
D1: 13 GX22456 Screw
D1: 14 GX20389 Rod
D1: 15 GY20142 Guide
D1: 16 GX20286 Idler
D1: 17 14M7400 Lock Nut
D1: 18 19H3852 Cap Screw
D1: 19 M123830 Lock Washer
D1: 20 GY20878 Clutch
D1: 21 GY20129 Idler
D1: 22A GX22226BLE Strap
D1: 22B GX22213BLE Strap
D1: 23 24M7238 Washer
D1: 24 GX22214 Grommet
Use the + and - buttons to add and remove items from the quote request form below.



D2: 1 14M7465 Lock Nut
D2: 2 GY20629 Idler
D2: 3 GY20067 Idler
D2: 4 GX20305 V-Belt 1
D2: 5 GX20513 Nut
D2: 6 M155979 Pulley
D2: 7 GX22456 Screw
D2: 8 GX21582 Spring
D2: 9 19M7867 Screw
D2: 10 GX23240 Bushing
D2: 11 GY20146BLE
D2: 12A GY20050 Spindle
D2: 12B GY20785 Spindle
D2: 13 GX21927 Spacer
D2: 14 GX20151 Adapter Fitting
D2: 15 GX20150 Spindle
D2: 16 M85516 Lock Nut
D2: 17 JD7849 Lubrication Fitting
D2: 18 GX21510 Ball Bearing
D2: 19 19M7786 Screw
D2: 20 GX20250 Mower Blade
D2: 20 GY20568 Mower Blade Kit
D2: 20 GX20819 Mower Blade Mulch, Optional
D2: 20 GX20434 Mower Blade High Lif t, Bagging
D2: 21 GY20067 Idler
D2: 22 GX20818 Ball Bearing
D2: 23 GY20996 Mower Deck
D2: 24 GY21087 Mower Deck
Use the + and - buttons to add and remove items from the quote request form below.



D3: 1 14M7400 Lock Nut
D3: 2 GY20629 Idler
D3: 3 GY20067 Idler
D3: 4 GX21833 V-Belt
D3: 5 GX20513 Nut
D3: 6 M155979 Pulley
D3: 7 GX22456 Screw
D3: 8 GX21582 Spring
D3: 9 19M7867 Screw
D3: 10 GX23240 Bushing
D3: 11 GY20986BLE Arm
D3: 12 GY20785 Spindle
D3: 13 GX21927 Spacer
D3: 14 GX20151 Adapter Fitting
D3: 15 GX20150 Spindle
D3: 16 M85516 Lock Nut
D3: 17 JD7849 Lubrication Fitting
D3: 18 GX21510 Ball Bearing
D3: 19 19M7786 Screw
D3: 20 GY20568 Mower Blade Kit
D3: .. GX20250 Mower Blade STD
D3: .. GX20819 Mower Blade Mulch
D3: .. GX20434 Mower Blade High Lift, Bagging
D3: 21 GY20067 Idler
D3: 22 GX20818 Ball Bearing
Use the + and - buttons to add and remove items from the quote request form below.



D4: 1 37M7089 Screw
D4: 2 GX20306BLE Shield
D4: 3 GY20861 Mow er Deck
D4: 4 GX20307BLE Shield
D4: 5 14M7396 Lock Nut
D4: 6 M155988 Hinge
D4: 7 03M7184 Bolt
D4: 8 GX20378BLE Chute
D4: 9 M131359 Spring
D4: 10 M84309 Retainer
D4: 11 GY21901 Chute
D4: 12 M138586 Pin Fastener
D4: 13 M131080 Torsion Spring
D4: 14 GX21012 Screw
D4: 15 GX20446 Screw
D4: 16 GX10168 Wheel
D4: 17 14M7400 Lock Nut
D4: 18 GY20691BLE Bracket
D4: 19 GX20237 Stud
D4: 20 24M7044 Washer
D4: 21 GX21022 Spring Locking Pin
D4: 22 GX20296JDY Bracket
D4: 23 GX20361JDY Bracket
Use the + and - buttons to add and remove items from the quote request form below.



D5: 1 GY21030 Mower Deck
D5: 2 GY20629 Idler
D5: 3 GX21833 V-Belt
D5: 4 GY20986BLE Arm
D5: 5 19M7867 Screw
D5: 6 14M7396 Lock Nut
D5: 7 M84309 Nut
D5: 8 M155988 Hinge
D5: 9 GX20378BLE Chute
D5: 10 03M7184 Bolt
D5: 11 GY21901 Chute
D5: 12 M138586 Pin Fastener
D5: 13 M131080 Torsion Spring
D5: 14 M131359 Spring
D5: 15 14M7400 Lock Nut
D5: 16 M153513 Screw
D5: 17 GX22426 Port Plate
D5: 18 GX21022 Spring Locking Pin
D5: 19 24M7053 Washer
D5: 20 GX22587 Rod
D5: 21 GX21718 Trunnion
D5: 22 37M7089 Screw
D5: 23 GX22425 Quick Coupler
Use the + and - buttons to add and remove items from the quote request form below.



D6: 1 19M7818 Screw
D6: 2 GX21137 Bushing
D6: 3 GY20532BLE Axle
D6: 4 JD7844 Lubrication Fitting
D6: 5 GX21931 Washer
D6: 6 R27434 Retainer
D6: 7 M128102 Cap
D6: 8 GX21577 Guide
D6: 9 37M7089 Screw
D6: 10 14M7400 Lock N
D6: 11 GX20059 Shaft
D6: 12 A64624 Snap Ring
D6: 13 GX21994 Bushing
D6: 14 GY20039 Steering Wheel
D6: 15 24M7044 Washer
D6: 16 B30963 Lock Nut
D6: 17 GX20339 Cap
D6: 18 GX20336 Bushing
D6: 19 GX22456 Screw
D6: 20 GX20056BLE Plate
D6: 21 GX20053 Gear
D6: 22 GX20052BLE Gear
D6: 23 24M7226 Washer
D6: 24 14M7401 Lock Nut
D6: 25 GY20616BLE Spindle
D6: 26 24H1856 Washer
D6: 27 GX20054 Bushing
D6: 28 19M7835 Screw
D6: 29 GY20492 Drag Link
D6: 30 GY20491 Drag Link
D6: 31 GY20617BLE Spindle
D6: 32 Z9972H Thrust Washer
Use the + and - buttons to add and remove items from the quote request form below.



D7: 1 H135891 Lock Nut
D7: 2 M112982 Ball
D7: 3 GX20497 Arm
D7: 4 M144705 Spring Locking Pin
D7: 5 GX21653BLE Bracket
D7: 6 14M7396 Lock Nut
D7: 7 GX23233BLE Bracket
D7: 8 GX20237 Stud
D7: 9 24M7044 Washer
D7: 10 GX21162BLE Hanger
D7: 11 GY20608 Shaf t
D7: 12 GX22456 Screw
D7: 13 GX20033BLE Bracket
D7: 14 GX20281 Grip
D7: 15 GX20032 Handle
D7: 16 GX20274 Torsion Spring
D7: 17 GX20146 Spring
D7: 18 GX22784 Link
D7: 19 GX20190 Push Nut
D7: 20 GX20031BLE Tube
D7: 21 GX20401 Stud
D7: 22 24M7296 Washer
D7: 23 14M7400 Lock Nut
D7: 24 GX21022 Spring Locking Pin
D7: 25 GX22587 Rod
D7: 26 24M7053 Washer
D7: 27 GX21022 Spring Locking Pin
D7: 28 GX21718 Trunnion
D7: 29 14M7400 Lock Nut
No diagram currently available - please fill in the form below if you need something which isn't listed.
No diagram currently available - please fill in the form below if you need something which isn't listed.
No diagram currently available - please fill in the form below if you need something which isn't listed.

Request a quote for less popular spare parts and accessories
